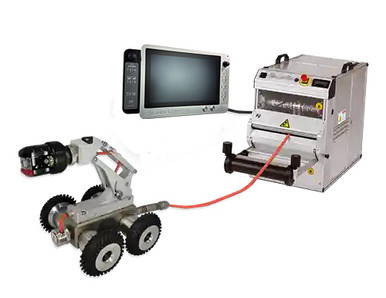

Preconfigured Riezler Storm Sewer Crawler System

Developed by professionals for the professionals, the Preconfigured Riezler Storm Sewer Crawler System is the work horse of the industry, tackling some of the toughest job conditions with exceptional power and control. Made readily available through our partnership with Germany-based Riezler Inspection Systems, this robust and powerful steerable crawler delivers clear, high-quality imagery from within the sewer system directly to operators. This allows users to diagnose issues quicker and with greater accuracy for smarter reporting and decision making.

Engineered to promote versatility and reliability for maximum productivity, this camera crawler is equipped with an electrical elevator for optimal camera positioning. Its pan-and-tilt camera head allows for 360° inspection with horizon compensation and 90° left/right viewing. Offering optimal control, the system’s control unit ensures accurate, 1280 x 800 high-resolution inspections through the 12.4” daylight-readable touchscreen even in the most challenging environments.

Key Features:

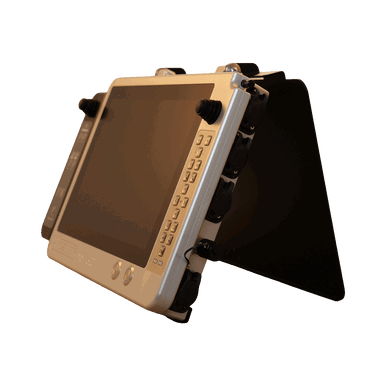

• Riezler MSE-600 Control Unit
• 12.4" daylight-readable touchscreen with 1280 x 800 resolution.
• Industrial-grade PC with a 512 GB solid state hard drive and powerful RiVision software.
• Fully customizable data overlays for professional report generation.
• Compatible with all of the crawler systems (internal pressure data, pan/tilt degrees).
• WinCan vX compatible, with multilingual interface and reports.
• 100-240 V AC / maximum 250 watts power supply.
• KTM-200 Reel
• 492-656’ of Kevlar-reinforced, abrasion- and acid-resistant cable.
• Integrated digital meter counter and electronic control unit.
• Motorized reel with crawler synchronized or manual mode options.
• Adjustable pressure.
• Compatible with all of the crawler systems and pluggable camera heads.
• FWL-150 Pipeline Inspection Crawler
• Usable in 6" to 80" pipes.
• Steerable with eight powered wheels.
• Electrical camera elevator.
• Modular design that can be set up to handle a wide variety of tasks.
• Pressure-proof up to 1 bar (14.5 psi).
• Internal pressure surveillance.
• Tilt measurement.
• RSK-78 Pan and Tilt Camera Head
• Usable in 4" to 48" pipes.
• 18 ultra-bright, dimmable LEDs.
• Wide-angle 85° lens.
• 3x digital zoom (with MSE-500) with electronic adjustable focus.
• Self-leveling camera with auto-positioning functions.
• 360° inspection with horizon compensation and 90° left/right viewing.
• Waterproof up to 5 bar (72.5 psi).

Package Contents:

• MSE-600 Control Unit
• KTA-200 Reel
• FWL-150 Crawler
• RSK-78 Camera Head
• D160 Wheel Kit
• D215 Wheel Kit and Cradle
• Lift Hook
• (Optional) Add-Ons:
• Rearview camera
• Additional light kit
• Additional manual extension
• Locating sonde (33khz or 512hz)
• Multiple camera options

Limitless Applications

The Riezler storm sewer crawler is the perfect tool inspecting large storm sewer systems that range from 6” to 80” and more. It can provide clearer images of any cracks, blockages, infrastructure damage, or corrosion. This camera crawler is an excellent addition to pipeline cleaning and inspection arsenal as it scouts ahead to determine where the problem exists. This is especially useful for evaluating and maintaining municipal stormwater drainage systems, helping to ensure proper function and reduce flood risks.
