SnapTRACK Line Transmitter

The SnapTRACK line transmitter from Insight Vision is a powerful solution for accurately tracing lines and locating utilities. This transmitter features improved transmitter induction, multi-frequency coupled induction ranging from 131 kHz to 512 kHz, and automatic impedance matching for direct connection, providing operators with flexible precision for locating utilities in challenging environments. All functions are accessed via weather-proof membrane buttons and both user input and transmitter status are verified with audible responses.

This highly efficient system, powered by 8 C-cell batteries, can simultaneously apply two frequencies to a utility. With a single transmitter setting, users can identify the main line and additional services by illuminating the entire area. This set-and-forget feature saves time and money by reducing the need to repeatedly relocate the transmitter, improving operational efficiency while out in the field.

Key Features:

• Multi-Frequency Capability: Offers a wide range of frequencies from 512 Hz to 131 kHz, enabling accurate detection of utilities over different depths and materials.
• Set-and-Forget Dual Frequency Transmission: Simultaneously applies two frequencies, allowing the location of the main line and surrounding utilities without the need to reset the transmitter.
• Automatic Impedance Matching: Automatically adjusts impedance levels between 5 ohms and 25,000 ohms, optimizing signal transmission for reliable utility locating.
• Durable Construction with IP65 Rating: Weather-resistant and dust-tight, ensuring reliable performance in harsh field conditions.
• Powerful Output: Adjustable output power ranges from 0.2W to 3W, with three power settings for low, medium, and high frequencies.
• Long Battery Life: Powered by 8 C-cell batteries, offering continuous operation for 8 to 15 hours depending on load and power settings.
• User-Friendly Interface: Weatherproof membrane buttons for easy access to functions, with audible and visual responses for status verification.
• Advanced Indicators: Includes AC load measurement, voltage and current output, frequency mode, power level, and low battery alerts for streamlined operations.

Package Contents

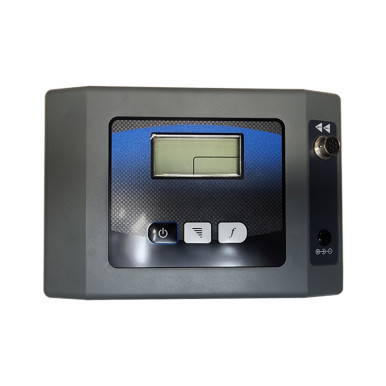

• SnapTRACK Line Transmitter

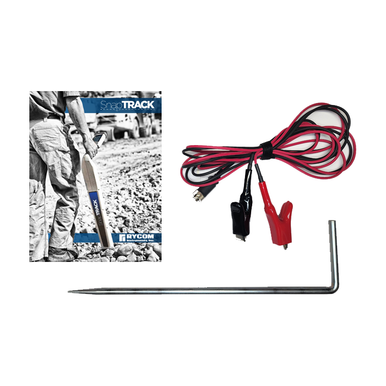

• Direct Connection Cord lead clips, each with 15 feet of reach
• Ground Rod for independent near-end grounding

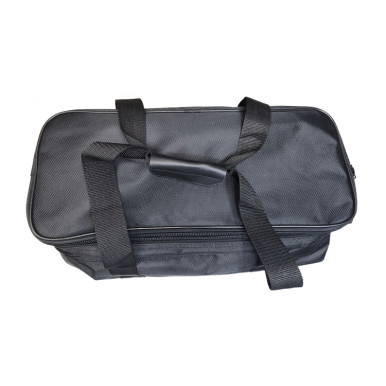

• Protective Carrying Case with padded protection for equipment transport

Uncompromising Quality

The SnapTRACK Line Transmitter delivers unmatched efficiency and reliability for utility locating tasks. Its advanced multi-frequency capabilities, automatic impedance matching, and weatherproof design make it the ideal tool for professionals within the industry. With a wide frequency range, dual transmission capability, and long-lasting battery life, the SnapTRACK Line Transmitter stands out as a robust, field-ready solution that saves time and improves accuracy.
